- ASROCK
Цена
€166 28 / 325 22 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.asrock.com/MB/AMD/B650%20Steel%20Legend%20WiFi/index.asp#Overview
Model
B650 STEEL LEGEND WIFI
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Chipset
AMD B650
Storage
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset:
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
2 x SATA3 6.0 Gb/s Connectors**
ASMedia ASM1061:
2 x SATA3 6.0 Gb/s Connectors
Memory type
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Rear panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
4 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.)
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
CPU:
1 x USB 3.2 Gen2 Type-A (Rear)
2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_12)) Chipset:
1 x USB 3.2 Gen2x2 Type-C (Rear)
1 x USB 3.2 Gen1 Type-C (Front)
6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_34), 4 Front)
8 x USB 2.0 (4 Rear, 4 Front)
Connectors
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
Individual PCB Layers for R/L Audio Channel
Impedance Sensing on Rear Out port
Nahimic Audio
Lan
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2x2 with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.2 + High speed class II
Supports MU-MIMO
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
8 Layer PCB
OS
Microsoft Windows® 10 64-bit / 11 64-bit
Other
Superb Productivity
PCIe Gen5 (Graphics, M.2)
Dual Channel DDR5
Rock-Solid Durability
14+2+1 Power Phase, 80A Dr.MOS with Enlarged Heatsink Armor
Flexible Integrated I/O Shield
20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
EZ Troubleshooter
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC*
UEFI
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
Warranty
36 Months
| Атрибут | Стойност |
|---|---|
| Chipset | AMD B650 |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| CPU's supported | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| CPU's supported | Chipset: |
| CPU's supported | 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* |
| CPU's supported | 1 x PCIe 4.0 x1 Slot (PCIE3)* |
| CPU's supported | 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| CPU's supported | Supports AMD CrossFire™ |
| CPU's supported | 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Memory type | Dual Channel DDR5 Memory Technology |
| Memory type | 4 x DDR5 DIMM Slots |
| Memory type | Max. capacity of system memory: 256GB |
| Memory type | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Memory type | Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Form Factor | 8 Layer PCB |
| Audio | Nahimic Audio |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) |
| Audio | Individual PCB Layers for R/L Audio Channel |
| Audio | Impedance Sensing on Rear Out port |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | Dragon RTL8125BG |
| LAN | Smart Auto Adjust Bandwidth Control |
| LAN | Visual User Friendly UI |
| LAN | Visual Network Usage Statistics |
| LAN | Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | User Customized Priority Control |
| LAN | Supports Dragon 2.5G LAN Software |
| LAN | 802.11axe Wi-Fi 6E Module |
| LAN | Supports IEEE 802.11a/b/g/n/ac/ax/axe |
| LAN | Supports Dual-Band 2x2 with extended 6GHz band* support |
| LAN | 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology |
| LAN | Supports Bluetooth 5.2 + High speed class II |
| LAN | Supports MU-MIMO |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
| Graphics | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Other | Software |
| Other | UEFI |
| Other | ASRock Full HD UEFI |
| Other | ASRock Instant Flash |
| Other | Superb Productivity |
| Other | PCIe Gen5 (Graphics, M.2) |
| Other | Dual Channel DDR5 |
| Other | Rock-Solid Durability |
| Other | 14+2+1 Power Phase, 80A Dr.MOS with Enlarged Heatsink Armor |
| Other | Flexible Integrated I/O Shield |
| Other | 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) |
| Other | Ultrafast Connectivity |
| Other | 2.5G LAN, 802.11axe Wi-Fi 6E Module |
| Other | EZ Update |
| Other | BIOS Flashback Button |
| Other | ASRock Auto Driver Installer |
| Other | EZ Troubleshooter |
| Other | ASRock Motherboard Utility (A-Tuning) |
| Other | ASRock Dragon 2.5G LAN Software |
| Other | ASRock Polychrome SYNC* |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| I/O | 1 x HDMI Port |
| I/O | 1 x DisplayPort 1.4 |
| I/O | 2 x Antenna Ports |
| I/O | 4 x USB 2.0 Ports |
| I/O | 1 x RJ-45 LAN Port |
| I/O | 1 x BIOS Flashback Button |
| I/O | 1 x Optical SPDIF Out Port |
| I/O | 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) |
| I/O | 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) |
| I/O | 4 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.) |
| I/O | 1 x Line Out Jack (Gold Audio Jack) |
| I/O | 1 x Microphone Input Jack (Gold Audio Jack) |
| I/O | CPU: |
| I/O | 1 x USB 3.2 Gen2 Type-A (Rear) |
| I/O | 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_12)) Chipset: |
| I/O | 1 x USB 3.2 Gen2x2 Type-C (Rear) |
| I/O | 1 x USB 3.2 Gen1 Type-C (Front) |
| I/O | 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_34), 4 Front) |
| I/O | 8 x USB 2.0 (4 Rear, 4 Front) |
| Storage | 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* |
| Storage | 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: |
| Storage | 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Storage | 2 x SATA3 6.0 Gb/s Connectors** |
| Storage | ASMedia ASM1061: |
| Storage | 2 x SATA3 6.0 Gb/s Connectors |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x Power LED and Speaker Header |
| Connectors | 1 x CPU Fan Connector (4-pin)*** |
| Connectors | 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
| Connectors | 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
| Connectors | 1 x Front Panel Audio Connector |
| Connectors | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Connectors | 1 x RGB LED Header* |
| Connectors | 3 x Addressable LED Headers** |
| Connectors | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| Connectors | 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Connectors | 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
| Тегло | 2.42кг |

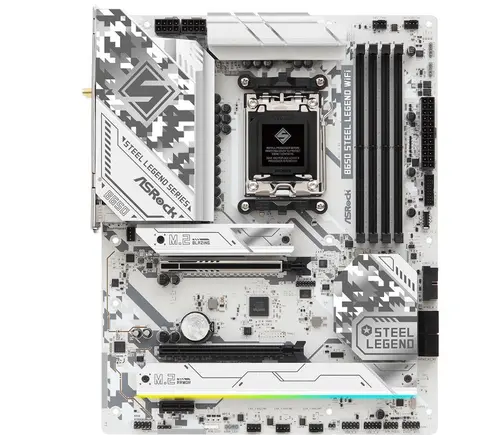

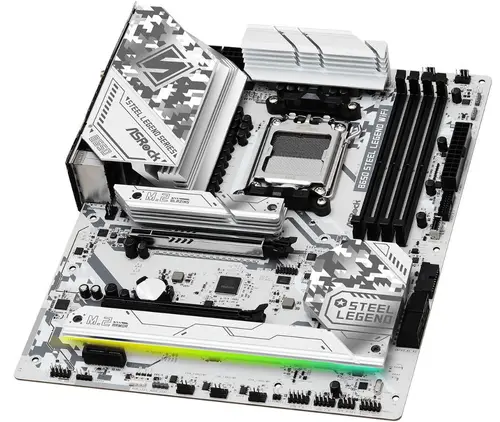

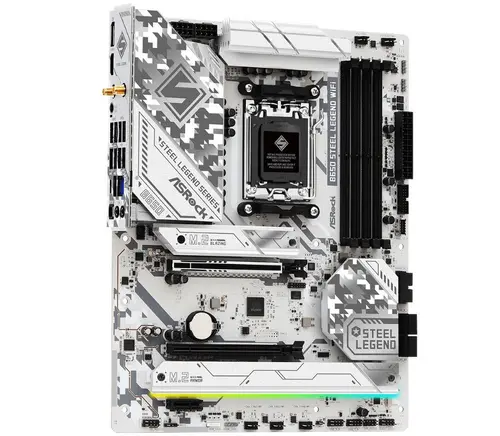

ASRock B650 Steel Legend WiFi – Премиум дънна платка за AM5 с PCIe 5.0 и WiFi 6E
Изживейте изключителна производителност с ASRock B650 Steel Legend WiFi, създадена за процесори AMD Ryzen 7000/8000/9000 на сокет AM5. С поддръжка на PCIe 5.0, DDR5 памет и вграден WiFi 6E, тази дънна платка осигурява невероятна скорост и свързаност за геймъри и творци.
Ключови Предимства
- Готовност за PCIe 5.0 — Поддържа най-новите видеокарти и NVMe SSD за ултра-бърз трансфер на данни.
- Поддръжка на DDR5 памет — До 7200MHz+ (OC) за превъзходна производителност при игри и многозадачност.
- Вграден WiFi 6E + Bluetooth 5.2 — Безжична връзка с висока скорост и ниска латентност.
- Издръжливост Steel Legend — Усилени PCIe слотове и радиатори за M.2 за дълготрайна надеждност.
- Polychrome RGB — Персонализируема RGB подсветка с вградени хедъри и софтуерно управление.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | ATX |
| Чипсет | AMD B650 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| M.2 слотове | 3 |
| SATA портове | 6 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка ASRock B650 Steel Legend WiFi
- Ръководство за потребителя
- Поддържащ CD
- 2 x SATA кабела
- Комплект винтове за M.2
- WiFi антена
- Заден панел I/O
